Innovative Design

The Catalyst Pedal features a full 5 inches/ 128 mm of contact space for your foot. This allows the pedal body to support both the ball of the foot and the heel while also resulting in a true mid-foot placement of the axle.

However, the Catalyst Pedal isn’t any wider than a normal flat pedal (3.75 inches/ 95 mm) so it disappears under your foot and doesn’t expose the pedal body to rock strikes.

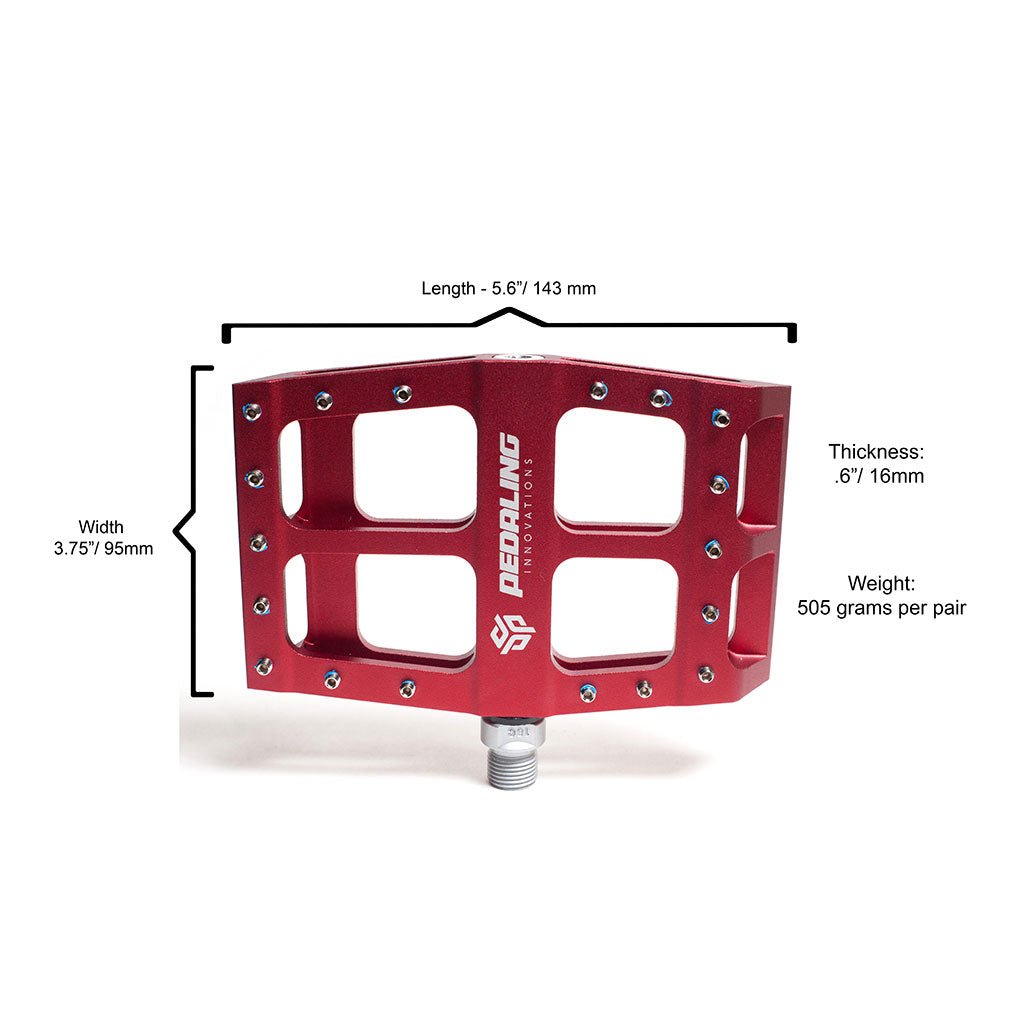

Pedal Specifications

Length: 5.6” / 143 mm
Width: 3.75” / 95 mm
Thickness: .6” / 16 mm
Weight: 505 grams per pair

$99 USD

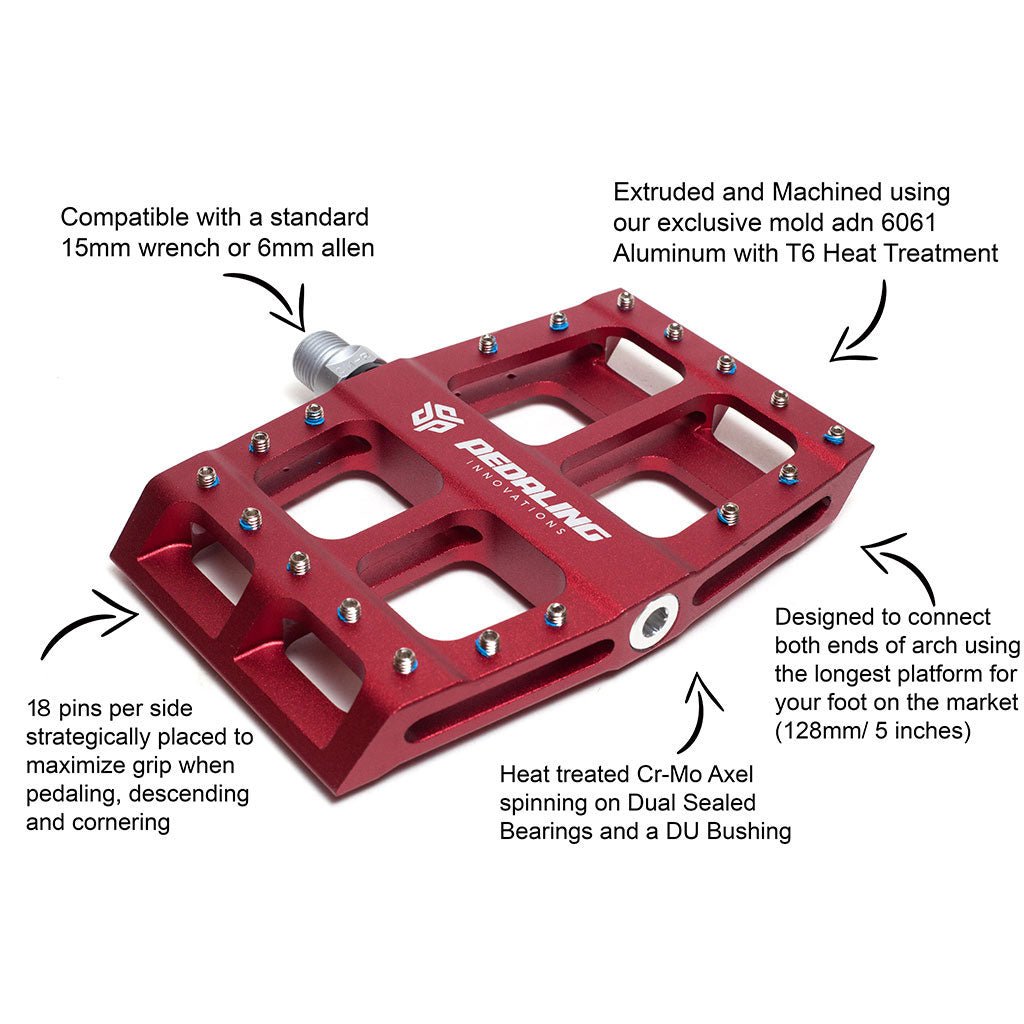

Catalyst Pedal Design Highlights

  • Extruded and Machined using our exclusive mold using 6061 Aluminum with T6 Heat Treatment
  • Manufactured by VP Components using parts and materials with a proven track record for durability and quality
  • Designed to connect the front and back ends of arch of the foot, it is the longest platform for your foot on the market
  • Dual sealed bearings and DU bushing internals
  • Heat treated Cr-Mo Spindle that is compatible with a standard 15mm wrench or 6mm allen
  • 12 pins per side strategically placed to maximize the new, optimized foot position possible with this design
  • Shipped with longer (8mm) replacement grub screws to swap out for extra traction
  • Rebuild kits and replacement axels are available
